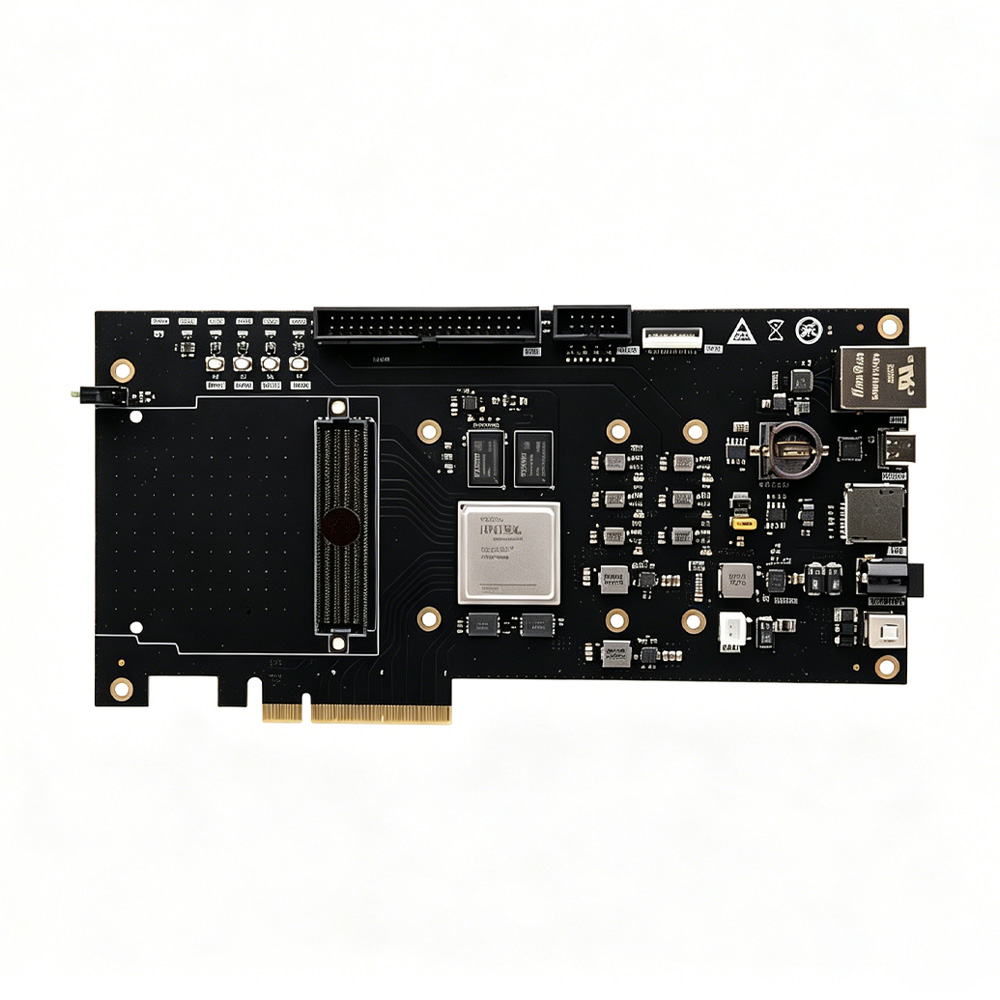

KU5P is a high-performance development platform based on the AMD Kintex UltraScale+ series XCKU5P FPGA. Equipped with PCIe Gen3 x8, FMC HPC, and GTY 28Gb/s high-speed transceiver interfaces, it features outstanding advantages of high bandwidth, strong computing power, and high cost-performance. It is an ideal development and hardware deployment platform for mid-to-high-end scenarios such as video processing, industrial automation, high-speed communication, machine vision, data acceleration, and medical imaging.
Key Features:
- PCIe Gen3 x8｜Provides high-speed host interconnect bandwidth to meet big data throughput and system expansion requirements
- FMC HPC｜Standard high-speed expansion interface, flexibly adapts to various peripherals and mezzanine cards, with strong expansion capability
- GTY 28Gb/s High-Speed Transceiver｜Supports high-speed signal transmission, communication protocol processing, and data interaction
Core Specifications:
| FPGA Model |
XCKU5P-2FFVB676I |
| QSPI FLASH |
64MB |
| Memory |
DDR4 2GB |
| Logic Cells |
475K |
| LUTs |
217K |
| Flip-Flops |
434K |
| DSP Slices |
1824 |
| Block RAM |
16.9Mb |
| HD IO |
70 |
| HP IO |
96 |
| Transceivers |
GTY 28Gb/s x16 |
| PCI Express |
PCIe Gen3 x8 |

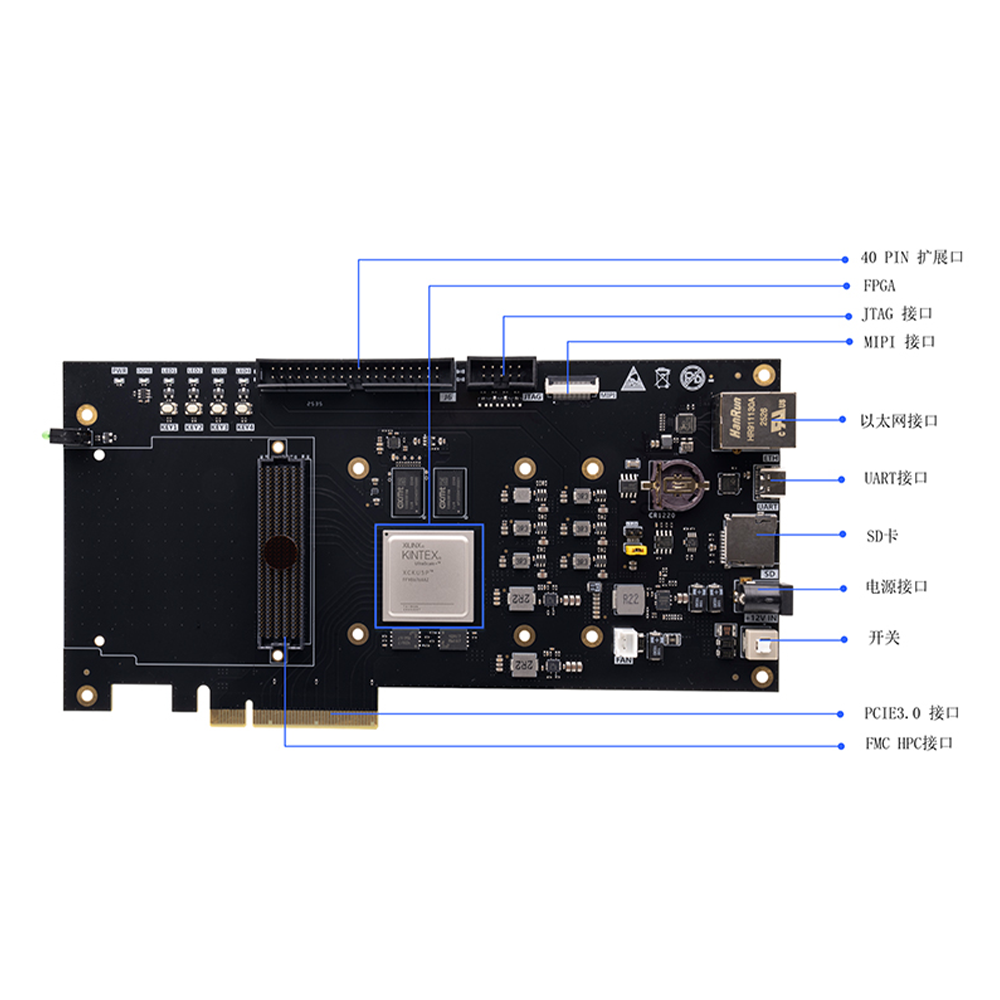

Interfaces:
| LEDs |
6 user LEDs; 2 status LEDs |
| Buttons |
4 user buttons; 1 power button |
| JTAG Interface |
1 JTAG interface for programming and debugging |
| Gigabit Ethernet |
1 10M/100M/1000M auto-negotiation RJ45 interface |
| FMC HPC Interface |
1 FMC HPC interface, supports various standard FMC mezzanine cards |
| MIPI Interface |
1 MIPI interface for MIPI camera connection |
| USB-UART |
1 UART-TYPE C interface |
| SD Card Slot |
1 Micro SD card slot for storage |
| RTC Clock |
1 RTC real-time clock with battery holder |
| Clock Configuration |
200MHz differential clock for DDR4 |
| 40 PIN Expansion |
1 40PIN expansion header for external modules |
| PCIe Interface |
1 PCIe 3.0 x8 interface; single channel up to 8Gb/s |
Power Parameters:
| Input Voltage |
+12V DC input |
| Input Current |
3A max current protection |
| Power Supply |
12V/3A |
Package Included:
| FPGA Development Board |
1 pc |
| TF Card |
1 pc |
| Cooling Fan |
1 pc |
| 12V Power Supply |
1 pc |
| TYPE-C Cable |
1 pc |
| Acrylic Plate |
1 pc |
| PCIe Bracket |
1 pc |
Applications:
- High-Speed Communications: 5G/6G baseband processing, 100G optical transmission, software-defined radio, MIMO signal processing
- Data Center Acceleration: Network processing, storage offload, encryption/decryption, AI inference hardware acceleration
- Machine Vision: Multi-camera synchronized acquisition, high-speed image preprocessing, industrial defect detection
- Radar & High-Speed Acquisition: RF signal processing, multi-channel high-speed AD acquisition, spectrum analysis
- Medical Imaging: Medical image preprocessing, ultrasound imaging data processing
- Test & Measurement: Semiconductor ATE, oscilloscope, high-speed signal analyzer prototyping
- Industrial Edge: Motion control, equipment condition monitoring, industrial gateway hardware acceleration
